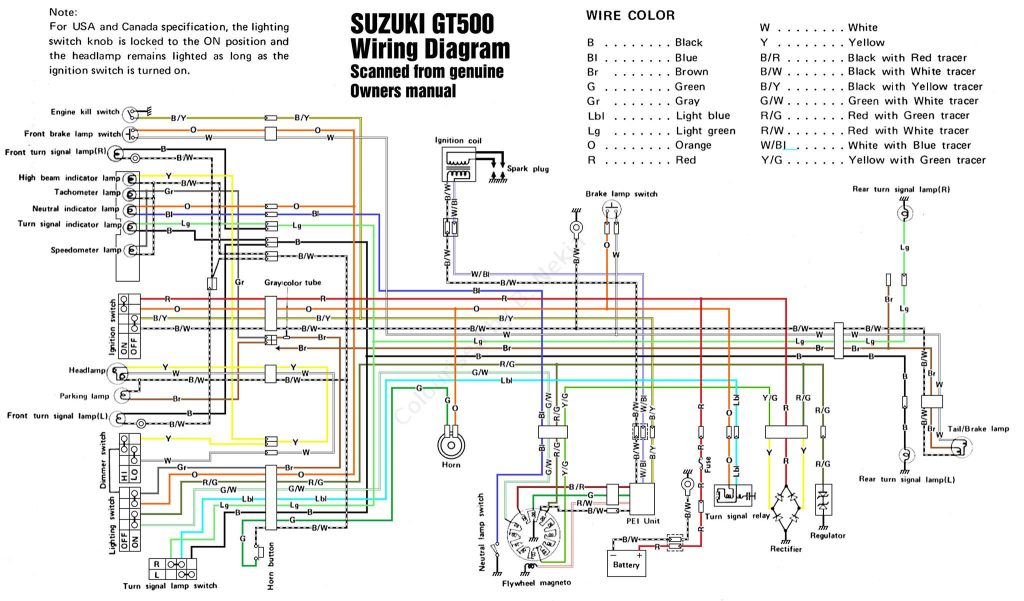

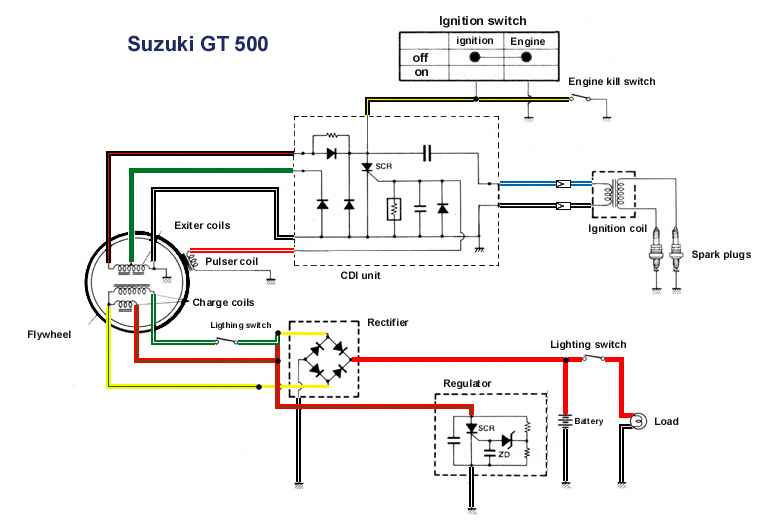

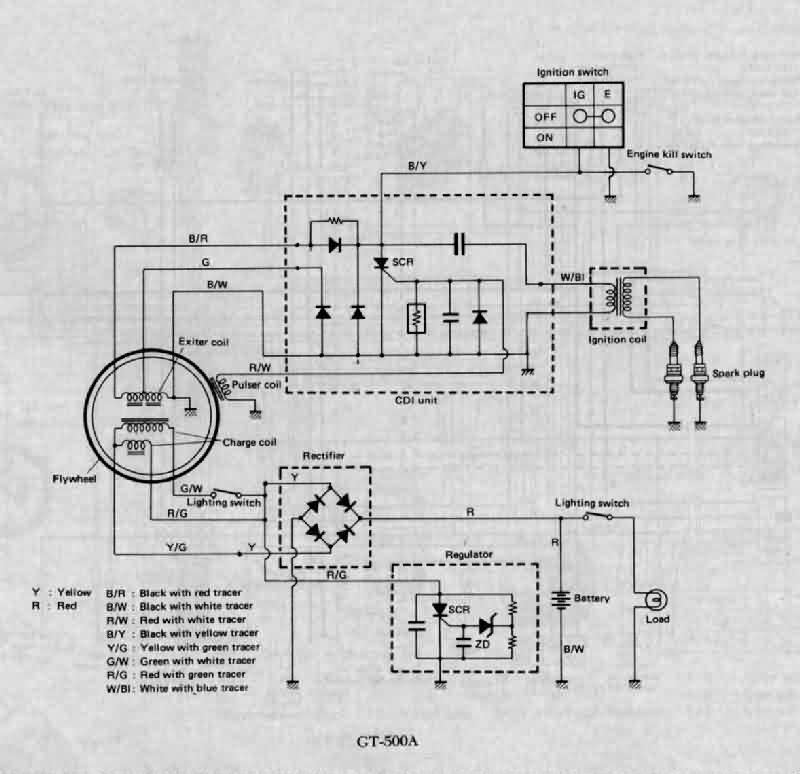

GT500 wiring diagram

Posted on April 4, 2023April 5, 2023 by muzza

Share:

Posted in GT500 Wiring Diagram, GT500, Technical Tagged GT500
